80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

ब्रांड नाम:	Beishun
मॉडल संख्या:	XLB-500×500/0.8MN
एमओक्यू:	1 सेट
कीमत:	बातचीत योग्य
भुगतान की शर्तें:	एल/सी,टी/टी
आपूर्ति की क्षमता:	30 सेट/40 दिन

विस्तृत जानकारी

उत्पाद वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

क़िंगदाओ

प्रमाणन:

ISO/CE

गरम करना:

बिजली / तेल / भाप

संरचना शैली:

क्षैतिज

सिलेंडर स्ट्रोक:

500 मिमी

नियंत्रण:

पीएलसी स्वत:

वल्कनीकरण का समय:

0-999एस

मशीन प्रकार:

हाइड्रोलिक/मैकेनिकल वल्केनाइजिंग प्रेस

अन्य नाम:

फ्लैट वल्केनाइजिंग प्रेस

तापमान की रेंज:

0-400 ℃

परिचालन तापमान:

300°C तक

मोल्ड अनुकूलता:

कस्टम मोल्ड समर्थित

हीटिंग मोड:

बिजली की हीटिंग

प्रमुख विक्रय बिंदु:

अच्छी गुणवत्ता और कीमत

पैकेजिंग विवरण:

40जीपी/ओटी

प्रमुखता देना:

80-ton PLC vulcanizing machine

column-type flat vulcanizing press

automatic rubber vulcanizing machine

उत्पाद वर्णन

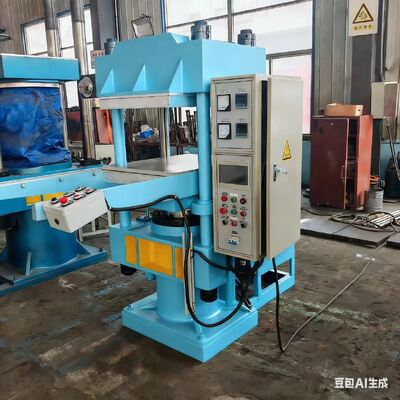

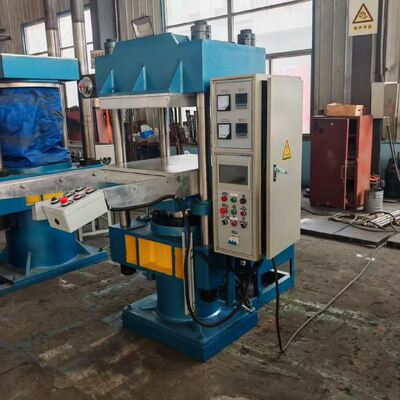

80-ton Column-type Precision PLC Fully Automatic Flat Vulcanizing Machine

Applications & Capabilities

This advanced 80-ton column-type precision PLC fully automatic flat vulcanizing machine is engineered for high-performance rubber hydraulic molding across diverse industrial applications:

Silicone Rubber Products: O-rings, mobile phone keyboards, computer keyboards, remote control buttons, pressure cooker and rice cooker sealing gaskets, household appliance components, food and medical device parts, nipples, medical supplies, handicrafts, toy seals, conductive rubber, automotive rubber parts, industrial rubber components, medical silicone products, sports equipment, various utensils, multi-layer molded products, plywood, epoxy resin boards, carbon fiber boards, PI films, and various composite materials and rubber-plastic products for hot pressing, shaping, manufacturing, and processing.
Flat Tapes and Sheets: Precision molding of flat tapes, sheets, and polymer flat products.
Seals and O-rings: Production of various rubber molded and non-molded products including seals, O-rings, oil seals, gaskets, thermosetting plastics, foams, resins, building materials, and diverse rubber-plastic products.

These machines are essential equipment in the rubber products industry, delivering precision, reliability, and automation for demanding manufacturing environments.

Technical Specifications

Model	XLB-D350X350	XLB-D400X400	XLB-D600X600	XLB-D750X850	XLB-D900X900
Total Pressure	0.25mn	0.50mn	1.00mn	1.60mn	2.50mn
Platen Size	350x350mm	400x400mm	600x600mm	750x850mm	900x900mm
Daylight	125mm	125mm	125mm	125mm	125mm
Working Layer	2	2	2	2	2
Piston Stroke	250mm	250mm	250mm	250mm	250mm
Heating Method	Electric	Electric	Electric	Electric	Electric
Platen Unit Area Pressure	20kg/cm²	31kg/cm²	28kg/cm²	31kg/cm²	31kg/cm²
