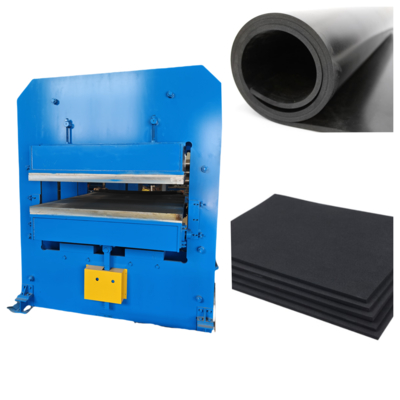

800 Ton Clamping Force Rubber Vulcanizing Press for EPDM Rubber Sheet Manufacturing

This 800 Ton Rubber Vulcanizing Press is specially engineered for the production of EPDM rubber sheets, delivering high clamping force and excellent temperature control for consistent quality and performance.

Key Features:

• Clamping Force: 800 tons (customizable)

• Application: EPDM sheet, rubber flooring, industrial rubber sheets

• Platen Size: Custom sizes available (e.g., 1200×1200mm / 1500×1500mm)

• Heating System: Electric heating / Steam / Oil heating optional

• Control System: PLC touch screen with automatic pressure and temperature control

• Structure: Four-column or frame type design for heavy-duty operation

• Automation: Optional automatic mold opening, loading/unloading systems

• Certifications: CE / ISO compliant

Advantages:

• Suitable for continuous batch production of EPDM sheets

• High efficiency, energy-saving design

• Uniform pressure and temperature distribution

• Rugged and long-lasting performance for industrial use

An 800-ton clamping force rubber vulcanizing press is a heavy-duty hydraulic press used in the manufacturing of EPDM rubber sheets and other rubber products. This machine applies heat and pressure to cure (vulcanize) rubber compounds, ensuring optimal physical properties like elasticity, durability, and resistance to weathering.

Key Features of an 800-Ton Rubber Vulcanizing Press for EPDM Sheets:

1. High Clamping Force (800 Tons)

   • Ensures uniform pressure distribution for consistent vulcanization.

   • Suitable for thick or large-format EPDM sheets (e.g., roofing membranes, gaskets, seals).

2. Heating System

   • Electric, Steam, or Oil Heating – Maintains precise temperature control (typically 150°C–200°C for EPDM).

   • Multi-zone heating for even heat distribution.

3. Hydraulic System

   • High-pressure hydraulic cylinders for smooth operation.

   • Programmable pressure settings for different rubber formulations.

4. Platen Size & Daylight Opening

   • Customizable platen dimensions (e.g., 1500x3000mm, 2000x4000mm) to fit sheet size requirements.

   • Adjustable daylight opening for different thicknesses.

5. Control System

   • PLC + Touchscreen HMI for automated curing cycles.

   • Data logging for quality control and process optimization.

6. Automation Options

   • Automatic mold loading/unloading for high-volume production.

   • Vacuum system to remove trapped air for defect-free sheets.

Applications of EPDM Rubber Sheets Made with This Press:

• Roofing Membranes (EPDM is weather-resistant and UV-stable).

• Automotive Seals & Gaskets (high-temperature resistance).

• Industrial Rubber Linings & Pads (chemical and abrasion resistance).

• HVAC & Waterproofing Membranes.

Advantages of Using an 800-Ton Vulcanizing Press for EPDM:

✔ Consistent Curing – Eliminates weak spots in rubber sheets.
✔ High Production Capacity – Suitable for large batches.
✔ Customizable Process – Adjustable pressure, temperature, and time.
✔ Durable Output – Produces high-quality, long-lasting EPDM sheets.

Manufacturer Considerations:

• Look for presses with ISO 9001 certification.

• Choose between frame-type or column-type designs based on production needs.

• Consider energy-efficient models with servo-hydraulic systems.

Would you like recommendations for specific manufacturers or technical specifications for your production requirements?

Here’s a comprehensive FAQ (Frequently Asked Questions) section for an 800-ton clamping force rubber vulcanizing press used in EPDM rubber sheet manufacturing:

1. What is an 800-ton rubber vulcanizing press used for?

• It is a heavy-duty hydraulic press designed to cure (vulcanize) EPDM rubber sheets under high pressure and temperature, ensuring optimal elasticity, strength, and durability.

2. Why is 800-ton clamping force necessary for EPDM sheets?

• EPDM rubber, especially for thick or large sheets (e.g., roofing membranes), requires high pressure to ensure:
  ✔ Uniform curing (no air bubbles or weak spots).
  ✔ Proper density and mechanical properties.
  ✔ Consistent thickness across the sheet.

3. What heating methods are available for this press?

• Common heating options:

  • Electric heating (precise, energy-efficient).

  • Steam heating (cost-effective for large platens).

  • Oil heating (stable for high-temp vulcanization).

4. What is the typical vulcanization temperature for EPDM rubber?

• 150°C–200°C (302°F–392°F), depending on the EPDM compound and thickness.

5. How long does the vulcanization process take?

• Typically 5–30 minutes, depending on:

  • Sheet thickness.

  • EPDM formulation.

  • Temperature and pressure settings.

6. What platen sizes are available?

• Customizable, but common sizes include:

  • 1500×3000 mm (5×10 ft)

  • 2000×4000 mm (6.5×13 ft)

  • Larger sizes for industrial roofing membranes.

7. Can this press be automated?

• Yes! Options include:

  • Automatic mold loading/unloading.

  • Robotic sheet extraction.

  • PLC-controlled curing cycles with data logging.

8. What maintenance is required?

• Regular checks for:

  • Hydraulic oil levels & leaks.

  • Heating element functionality.

  • Platen alignment & cleanliness.

9. What safety features are included?

• Standard safety measures:

  • Emergency stop buttons.

  • Pressure relief valves.

  • Thermal overload protection.

  • Two-hand operation mode (optional).

10. How energy-efficient is an 800-ton vulcanizing press?

• Modern presses use:

  • Servo-hydraulic systems (reduces power consumption).

  • Insulated platens (minimizes heat loss).

11. Can this press vulcanize other rubber types besides EPDM?

• Yes! Suitable for:

  • Natural rubber (NR), Nitrile (NBR), Silicone, Neoprene, etc.

  • Different rubber compounds may require adjusted pressure/temperature.

12. What’s the difference between a frame-type and column-type press?

• Frame-type: More rigid, better for large sheets.

• Column-type: Easier mold changes, common for medium-sized products.

13. How do I choose the right vulcanizing press for my production?

• Consider:

  • Sheet size & thickness.

  • Production volume (manual vs. automated).

  • Heating method preference.

  • Budget & energy efficiency needs.
